MODEL 1002 SERIES ELECTRIC THRUSTERS

The 1002 Series Electric Propulsion Systems provide the ultimate in reliability and efficiency. The Electric Motor efficiency is over 90%. The 1002 Electric Thruster produces a high level of thrust in the forward direction and 90+% in reverse operation.

– The venturi shape of the 1002 Thruster is ideally suited for Electric Drive because the Prop Turns Faster for the Same Power

– Streamlined Brushless DC, oil filled and pressure balanced direct drive electric submersible motors.  Capable of going to full ocean depth.

– Customized Solutions/Systems for R & D Programs or Prototype Vehicles, small or large. These electric thrusters can be precision matched to each application.

– Independently Tested – Ready-to-Purchase

The 1002 series electric thrusters are offered with a matching stand-alone motor controller option housed in a separate one atmosphere bottle.

View entire specifications of our Motor Controller Here

– The electric motors have a 3 tier seal system that includes Silicone Carbide Face Shaft Seals.  The motors also incorporate a bearing system that is optimized for long lasting quiet operation.

– Much Faster Response Time, Propeller only 9.25″ dia. of Anodized Heat Treated Aluminum Alloy.

– Heavy Duty Construction, All Anodized Aluminum and Stainless Steel.

Also available is the 1002H Hexscreen Electric Thruster: Protected by a unique honeycomb screen that is hydrodynamically designed to eliminate/recover 80% of the torque reaction, reduce cavitation and provide an overall efficiency increase that balances out any losses typically associated with protective screens.

Performance Data, Specifications and Illustrations

1002 Direct Drive Electric Thruster Internals

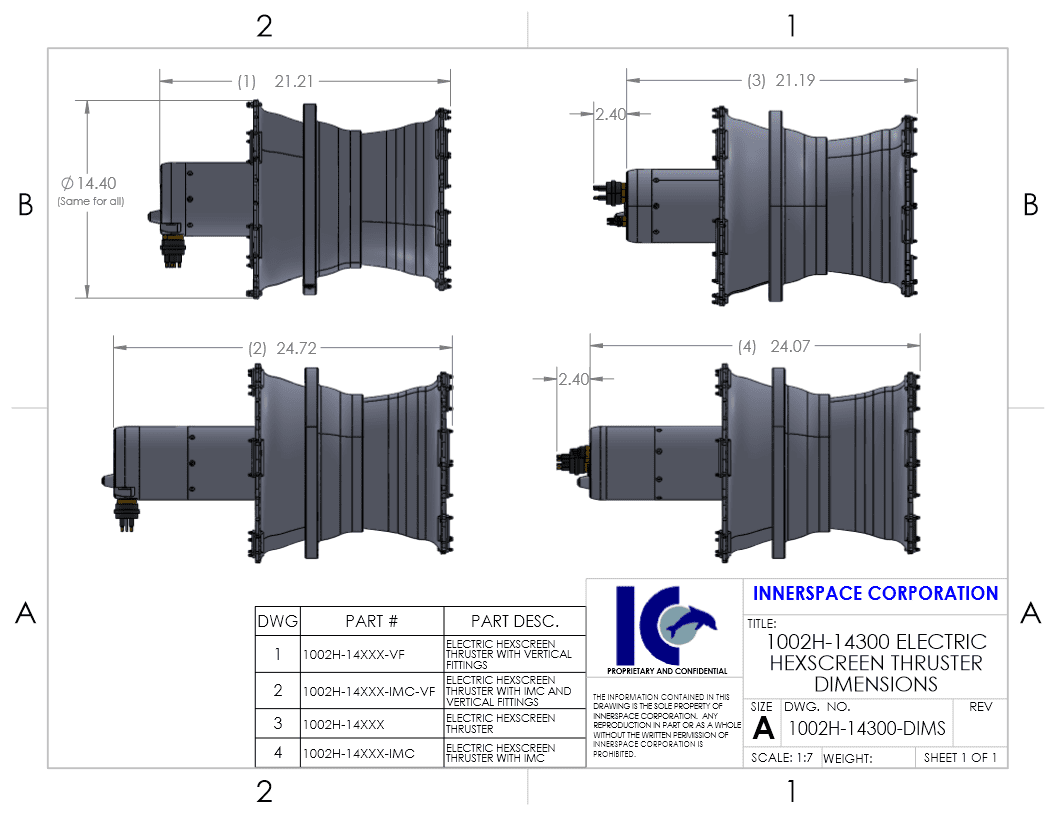

1002H-14XXXR Electric Hexscreen Thruster Dimensions & Weight

1002H-14XXXR DIMS WITH WEIGHT

Variations of the 1002 Thruster

1002H-14150R-SMC Hexscreen Electric Thruster – 150 Volts

Specifications

1002H-14150R-SMC-Electric-Thruster-Spec-Sheet

Performance Data

1002H-14150R-Hexscreen-Electric-Thruster-Performance

Diagram

1002H-14150R DIMS WITH WEIGHT

1002H-14300R-SMC Hexscreen Electric Thruster – 300 Volts

Specifications

1002H-14300R-SMC-Electric-Thruster-Spec-Sheet

Performance Data

1002H-14300R-Hexscreen-Electric-Thruster-Performance

Diagram

1002H-14300R DIMS WITH WEIGHT

1002H-14600R-SMC Hexscreen Electric Thruster – 600 Volts

Specifications

1002H-14600R-SMC-Electric-Thruster-Spec-Sheet

Performance Data

1002H-14600R-Hexscreen-Electric-Thruster-Performance

Diagram

1002H-14600R-Dimensions-with-Weights

A commitment to excellence and only the highest standards of quality and service have been maintained throughout our 65 year history.
